    T200 GSM GPRS Temp Humidity Alarm Power Failure SMS Alert
  • Release Time:2023/2/9 11:07:31
  • Introduction
  • Description
  • Detail

GSM/3G/4G Temp&Humidity&Power Status Monitoring T200 used for remote

monitoring site temperature & humidity & Power Status send SMS or call to 6 users

-40℃~+80℃:0.5℃,0~99%RH:3%RH

1 Temp&Humidity Input & 1 Siren Output & 2 Wired Switches

1 Relay output with SMS remote control or dial in

1 Relay output can be activated when Temp&Humidity&Power alarm and normal



support GSM: Quad-band 850/900/1800/1900MHz

4G: C:GSM:900/1800,

LTE-FDD B1/B3/B5/B8

LTE-TDD:B34/B38/B39/B40/B41

E:GSM:900/1800,

LTE-FDD B1/B3/B5/B7/B8/B20

SA:GSM:850/900/1800/1900M

LTE-FDD B1/B3/B5/B7/B8/B28/B66


1. Brief introduction

The GSM SMS Environment Alarm T200 is special for remotely monitoring site temperature, humidity, power status through wireless GSM Network. When the temperature, humidity, power status exceed high threshold or low threshold value, it will send SMS alert or call to 6 preset mobile phone immediately.

It is an automation system. When the temperature, humidity, power alarm and normal, it can link to Realy1 output actions, this is very useful when the temperature exceed appointed value, need switch on the air-conditioning immediately, or when water overflow and need switch on the dryer.

A relay0 with dial-in or SMS remote control. Up to 200 tel. numbers can be authorized for it. Because calls are not answered dial-in control within GSM is free of charge. (it only checks the caller’s number and - if the number is authorized - responds with relay activation.) This can be used for parking latch control, GSM gate opener, remote control machine, etc.

A siren output.when Alarm occurrence,it will output for 30 seconds.

It can report site environment in interval.

Rechargeable Backup Battery inside can last 6 hours


2. Parameter

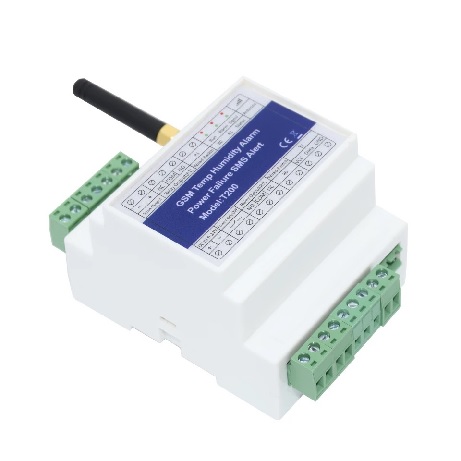

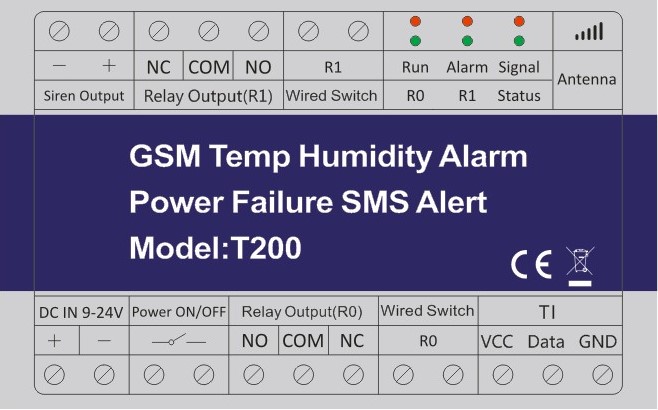

Control Unit physical layout



Interface Instruction

INDICATORS

Antenna

Connect to GSM/3G/4G antenna


Signal

Flash per 1 second (quickly): registering to cellular network.

Flash per 2 seconds: Normal status.

OFF: Unable to connect to SIM card or unregistered to the cellular network.

Alarm

Flash per 300ms: Alarm occurrence

Run

Flash per 1 second: Connected the cellular network successfully.

Always on: Reset successfully when pressing the Reset button.

OFF: Unable to connect to SIM card or unregistered to the cellular network.

Status

ON: Enable the armed mode

OFF: Disable the armed mode

R1

Relay(R1) Status, SMS remote control or Alarm occurrence in arm Status, the relay will work, this LED indicator will be on.

R0

Relay(R0) Status, calling in, the relay will work, this LED indicator will be on.

Connection Terminals

DC IN

9~24V

+

Power supply input, Positive wire.

-

Power supply input, Negative wire.

Power

ON/OFF



ON: Short connection. OFF: Disconnect. Switch on/off the GSM Unit.

If long time no use the unit, please disconnect them to save the battery.



Relay

Output

(R0)

NO

Normally Open port. The relay is 3A/240VAC. Connect to the switch of the electric lock or device.

COM

Common port. The relay is 3A/240VAC. Connect to the switch of the electric lock or device.

NC

Normally Close port. The relay is 3A/240VAC. Connect to the switch of the electric lock or device.

Wired Switch

R0

Dry contact, used to be connected with wired switch, like push button.

Notice: It should not be connected with voltage input.


TI

VCC

Connect to AM2301 Sensor VDD wire. Red wire

Data

AM2301 Data wire. Yellow wire.

GND

AM2301 GND, black wire.

Siren

Output

+

Output voltage is equal to Power supply input,Output Current:<=1A,connect to siren’s Positive wire.

-

GND, connect to siren’s Negative wire.


Relay

Output

(R1)

NO

Normally Open port. The relay is 3A/240VAC. Connect to the switch of the electric lock or device.

COM

Common port. The relay is 3A/240VAC. Connect to the switch of the electric lock or device.

NC

Normally Close port. The relay is 3A/240VAC. Connect to the switch of the electric lock or device.

Wired Switch

R1

Dry contact, used to be connected with wired switch, like push button.

Notice: It should not be connected with voltage input.


3.Technical shows

Rated Voltage: DC 9V~24V/1A

Working temperature: -10℃~+60℃

Storage temperature: -20℃~+60℃

Relative humidity: 10-90%, No condensation

Work frequency:

GSM: 850/900/1800/1900MHz

3G WCDMA: 900/2100 MHz UMTS

3G CDMA2000:850/1900MHz UMTS

3G: 850/2100MHz UMTS


support GSM: Quad-band 850/900/1800/1900MHz

4G: C:GSM:900/1800,

LTE-FDD B1/B3/B5/B8

LTE-TDD:B34/B38/B39/B40/B41

E:GSM:900/1800,

LTE-FDD B1/B3/B5/B7/B8/B20

SA:GSM:850/900/1800/1900M

LTE-FDD B1/B3/B5/B7/B8/B28/B66


Communication protocol: GSM PHASE 2/2+ (include data service)

Related Voltage of the Output Relay: 3A/240V AC

SIM Card:Nano type, 3V

Antenna: 50ΩSMA

Wired Switch: Supports


Temp&Humidity sensor:

Temperatures:-40-80°C,accuracy:0.5℃

Humidity:0-99RH%, accuracy:3%RH

Siren output:output voltage=DC input voltage,current:<1A

Backup Battery:3.7V/1000mAH

Dimension: 96.5*72*59mm

Net Weight:188g


4.features

1.      Can be operated from anywhere, no distance limitation.

2.      Up to 200 authorized phone numbers.the 1st ~3rd user numberscan receive SMS,andthe 4th ~6th user numberscan receive call while alarm occurrence.1~200 authorized phone numbers can call T200 to turn on/off the Relay0 free of charge

3.      One Temperature & Humidity sensor input, temperature measure range: -40~80°C,accuracy:0.5°C. Humidity measure range: 0-99%RH, accuracy:3%.

4.      External AC/DC Power status monitoring, AC/DC Power On/OFF will send SMS and call to 6 preset mobile phone immediately.

5.      Timer Report—Can setup every x hours automatically send its status/value to 6 preset mobile phone immediately.

6.      Support remotely read historic data via SMS.

7.      An automation system. When the temperature, humidity, power alarm or normal, it can link to Realy1 to action.

8.      A siren output.when Alarm occurrence,it will output for 30 seconds.

9.      Rechargeable Backup Battery inside can last 6hour.

10.   Secure - Using caller ID and password for identification, unknown callers are ignored.

11.   Programmable by SMS Commands with password protection.

12.   Based on GSM Network, applied to many applications. (temperature, humidity, power status, solar panel, dc voltage).

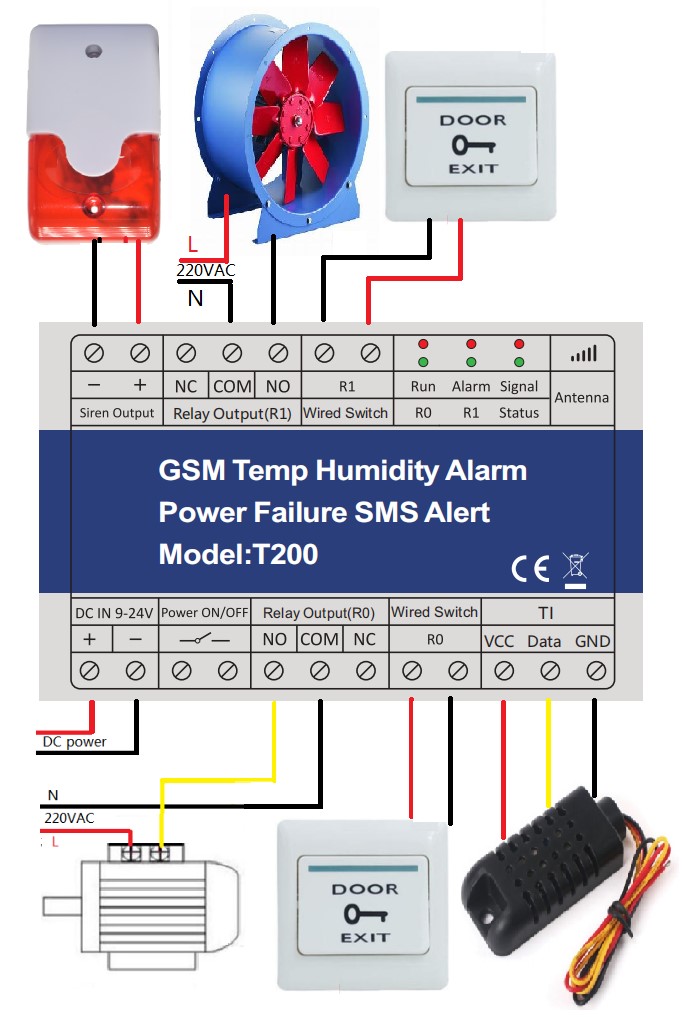

5.connection samples




1. Brief introduction

The GSM SMS Environment Alarm T200 is special for remotely monitoring site temperature, humidity, power status through wireless GSM Network. When the temperature, humidity, power status exceed high threshold or low threshold value, it will send SMS alert or call to 6 preset mobile phone immediately.

It is an automation system. When the temperature, humidity, power alarm and normal, it can link to Realy1 output actions, this is very useful when the temperature exceed appointed value, need switch on the air-conditioning immediately, or when water overflow and need switch on the dryer.

A relay0 with dial-in or SMS remote control. Up to 200 tel. numbers can be authorized for it. Because calls are not answered dial-in control within GSM is free of charge. (it only checks the caller’s number and - if the number is authorized - responds with relay activation.) This can be used for parking latch control, GSM gate opener, remote control machine, etc.

A siren output.when Alarm occurrence,it will output for 30 seconds.

It can report site environment in interval.

Rechargeable Backup Battery inside can last 6 hours


2. Parameter

Control Unit physical layout



Interface Instruction

INDICATORS

Antenna

Connect to GSM/3G/4G antenna


Signal

Flash per 1 second (quickly): registering to cellular network.

Flash per 2 seconds: Normal status.

OFF: Unable to connect to SIM card or unregistered to the cellular network.

Alarm

Flash per 300ms: Alarm occurrence

Run

Flash per 1 second: Connected the cellular network successfully.

Always on: Reset successfully when pressing the Reset button.

OFF: Unable to connect to SIM card or unregistered to the cellular network.

Status

ON: Enable the armed mode

OFF: Disable the armed mode

R1

Relay(R1) Status, SMS remote control or Alarm occurrence in arm Status, the relay will work, this LED indicator will be on.

R0

Relay(R0) Status, calling in, the relay will work, this LED indicator will be on.

Connection Terminals

DC IN

9~24V

+

Power supply input, Positive wire.

-

Power supply input, Negative wire.

Power

ON/OFF



ON: Short connection. OFF: Disconnect. Switch on/off the GSM Unit.

If long time no use the unit, please disconnect them to save the battery.



Relay

Output

(R0)

NO

Normally Open port. The relay is 3A/240VAC. Connect to the switch of the electric lock or device.

COM

Common port. The relay is 3A/240VAC. Connect to the switch of the electric lock or device.

NC

Normally Close port. The relay is 3A/240VAC. Connect to the switch of the electric lock or device.

Wired Switch

R0

Dry contact, used to be connected with wired switch, like push button.

Notice: It should not be connected with voltage input.


TI

VCC

Connect to AM2301 Sensor VDD wire. Red wire

Data

AM2301 Data wire. Yellow wire.

GND

AM2301 GND, black wire.

Siren

Output

+

Output voltage is equal to Power supply input,Output Current:<=1A,connect to siren’s Positive wire.

-

GND, connect to siren’s Negative wire.


Relay

Output

(R1)

NO

Normally Open port. The relay is 3A/240VAC. Connect to the switch of the electric lock or device.

COM

Common port. The relay is 3A/240VAC. Connect to the switch of the electric lock or device.

NC

Normally Close port. The relay is 3A/240VAC. Connect to the switch of the electric lock or device.

Wired Switch

R1

Dry contact, used to be connected with wired switch, like push button.

Notice: It should not be connected with voltage input.


3.Technical shows

Rated Voltage: DC 9V~24V/1A

Working temperature: -10℃~+60℃

Storage temperature: -20℃~+60℃

Relative humidity: 10-90%, No condensation

Work frequency:

GSM: 850/900/1800/1900MHz

3G WCDMA: 900/2100 MHz UMTS

3G CDMA2000:850/1900MHz UMTS

3G: 850/2100MHz UMTS


support GSM: Quad-band 850/900/1800/1900MHz

4G: C:GSM:900/1800,

LTE-FDD B1/B3/B5/B8

LTE-TDD:B34/B38/B39/B40/B41

E:GSM:900/1800,

LTE-FDD B1/B3/B5/B7/B8/B20

SA:GSM:850/900/1800/1900M

LTE-FDD B1/B3/B5/B7/B8/B28/B66


Communication protocol: GSM PHASE 2/2+ (include data service)

Related Voltage of the Output Relay: 3A/240V AC

SIM Card:Nano type, 3V

Antenna: 50ΩSMA

Wired Switch: Supports


Temp&Humidity sensor:

Temperatures:-40-80°C,accuracy:0.5℃

Humidity:0-99RH%, accuracy:3%RH

Siren output:output voltage=DC input voltage,current:<1A

Backup Battery:3.7V/1000mAH

Dimension: 96.5*72*59mm

Net Weight:188g


4.features

1.      Can be operated from anywhere, no distance limitation.

2.      Up to 200 authorized phone numbers.the 1st ~3rd user numberscan receive SMS,andthe 4th ~6th user numberscan receive call while alarm occurrence.1~200 authorized phone numbers can call T200 to turn on/off the Relay0 free of charge

3.      One Temperature & Humidity sensor input, temperature measure range: -40~80°C,accuracy:0.5°C. Humidity measure range: 0-99%RH, accuracy:3%.

4.      External AC/DC Power status monitoring, AC/DC Power On/OFF will send SMS and call to 6 preset mobile phone immediately.

5.      Timer Report—Can setup every x hours automatically send its status/value to 6 preset mobile phone immediately.

6.      Support remotely read historic data via SMS.

7.      An automation system. When the temperature, humidity, power alarm or normal, it can link to Realy1 to action.

8.      A siren output.when Alarm occurrence,it will output for 30 seconds.

9.      Rechargeable Backup Battery inside can last 6hour.

10.   Secure - Using caller ID and password for identification, unknown callers are ignored.

11.   Programmable by SMS Commands with password protection.

12.   Based on GSM Network, applied to many applications. (temperature, humidity, power status, solar panel, dc voltage).


5.connection samples
